CONTENTS

• Registration (Sample "Conditions of Use" screen)
• Overview
• Tool Bar
• Status Bar
• Manipulate the Map Layers (Display Tab)
• Find Secific Features (Find Tab)
• Display a Data Extent (Find Tab)
• Set Query Criterion (Query Tab)
• View Search Results
• View Metadata and DATA IMAGE
• Selecting Files For Download
• Downloading and Using GEODE Data

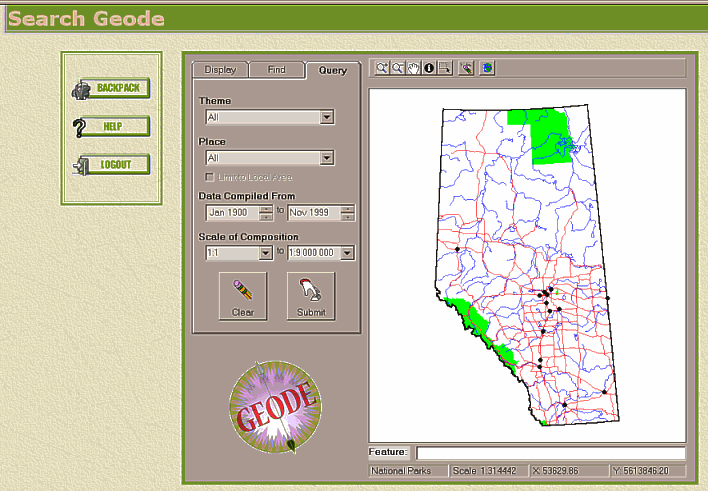

OVERVIEW

GEODE uses ActiveX component technology to provide the GIS functionality of the query builder (GEODE MapViewer). The control has been designed to emulate popular GIS packages, therefore, those familiar with GIS should find the control to be straightforward. GEODE MapViewer and its associated data resides on the client machine and must be installed prior to GEODE being used.

[Contents]

TOOL BAR

Zoom In - magnifies a selected area of the map:
• click once to zoom in to that point at 200%
• click and drag to draw a zoom extent on the map

Zoom Out - decreases magnification of the map:
• click once to zoom out to 50% - map will center at point clicked

Pan - scrolls the visible map area:
• click and drag to move the map

Identify - displays the name of a feature:
• set the layer you wish to query using the legend control
• click a feature on the active layer to view its name

Area Select - defines a spatial search area:
• click and drag to draw a rectangle on the map

Clear - removes map highlights and the spatial select area.

Full Extent - returns the map to its full size.

STATUS BAR

Feature - displays the results obtained by using the identify tool.

Active Layer - displays the name of the active layer.

Scale - displays the current scale ratio of the map.

X,Y Coordinates - displays X and Y coordinates of the mouse pointer over the map.

[Contents]

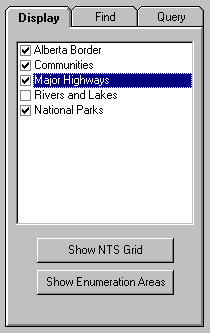

MANIPULATE THE MAP LAYERS (Display Tab)

Legend Control: Visible Layers - checked layers are displayed on the map: to turn off a layer click on the check mark for that layer Active Layer - is highlighted in blue to change the active layer click on layer desired Layer Order - layers are displayed in the order shown to change layer order: set the layer to be moved as active click and drag the layer to its desired position in the list Reference Layers - two reference layers (NTS Grid and Census Canada Enumeration Areas) can be added to the map click the 'Show' button for the layer desired the layer can be turned off using the map legend

[Contents]

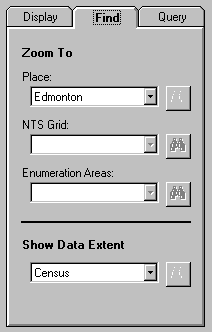

FIND SPECIFIC FEATURES (Find Tab)

Searchable Layers - GEODE has the ability to find specified: Communities NTS Grids (must be loaded) Census Canada Enumeration Areas (must be loaded) To zoom to a specific feature: load the NTS or EA layer if necessary type or use the pull-down list to indicate the feature desired click on the binoculars to zoom to the feature selected the feature will be highlighted in orange

[Contents]

DISPLAY A DATA EXTENT (Find Tab)

Show Data Extent - adds an image of a GEODE data set to the map:
• select the desired theme using the pull-down list
• click on the binoculars to display the image
• the image added to the map is treated as a layer and can be manipulated as such
• only one image can be displayed at a time - if another is selected, the previous will be removed

[Contents]

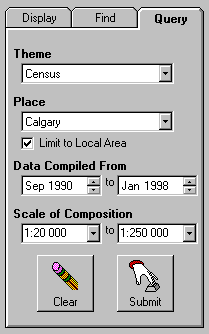

SET QUERY CRITERION (Query Tab)

Theme - limit to specific data theme Place - limit to specific named locality a specified place will take precedence over a defined spatial search limit to local area - returns only data sets specific to the specified locality Date - limit to data compiled between specified dates Scale - limit to data compiled between specified scales Spatial Search - limit to data contained within a specified search area drawn on the map Submit - process search using criterion specifed Clear - reset search criterion to default values

[Contents]

VIEW SEARCH RESULTS

Clicking the 'Results' button or 'Submit' on the Query Builder will take one to the Search Results window. This page diplays the title and abstract for each data set that meets the search specifications; (see a sample results display.). It also provides the ability to view the full metadata record or place a file into the backpack.

Clicking a file's 'MetaData' button will allow one to view the entire FGDC Standard metadata record.

Clicking a file's 'Select' button will add it to the backpack. The button will be 'grayed-out' if the file is already in the backpack.

[Contents]

VIEW METADATA and DATA IMAGE

Clicking the 'Metadata' button next to a file on either the View Results or Backpack pages will display the FGDC Standard metadata record for that file.

The Geode MetaData Report allows the user to view an entire metadata record; (see a sample report). The special navigation bar at the top allows navigation to any of the seven FGDC sections. Use the arrow button on the left side of the page to return to the navbar. The last button 'Graphic' will open an image of the data set.

[Contents]

SELECTING FILES FOR DOWNLOAD

The 'Backpack' is used by GEODE to hold files that have been selected until one is ready to download them. Clicking the 'Backpack' button will open the backpack page where one is able to view the backpack's contents, remove files, and submit a download request.

Files are added to the backpack on the 'Search Results' page.

Next to each data set in the backpack are two buttons. The first will allow one to view the meatdata record for that file. The second allows one to remove the file from the backpack.

Clicking the 'Clear' button will remove all files from the backpack. The 'Submit' button will allow one to submit the backpack to the download process.

[Contents]

DOWNLOADING AND USING GEODE DATA

Downloading a set of files from GEODE requires two separate steps.

1. On the 'Backpack' page, one must confirm that the files displayed are correct and then click the 'Submit' button. Geode will then package the backpack for download. Depending on the number of files, this can take several minutes to complete. When finished, Geode will display the filename and size of the file package. This file name is required to retrieve the file from the library.

2. Each campus will have differing download procedures. Details may be obtained from the campus Geode Coordinator.

On the 'Welcome' screen, clicking the 'Download' button will display a screen that allows one to enter the filename provided by Geode. Clicking on 'Submit' will initiate the downloading of the file to a local machine. When prompted, one clicks 'Save to disk' and enters an appropriate path and filename.

Geode data is provided in ESRI Shapefile format for feature data sets and in BIL format for grids. Each data set will be placed in a separate folder along with its matching metadata record.
