Cliff Bungalow-Mission Project: Linkages

Conceptual Redesign

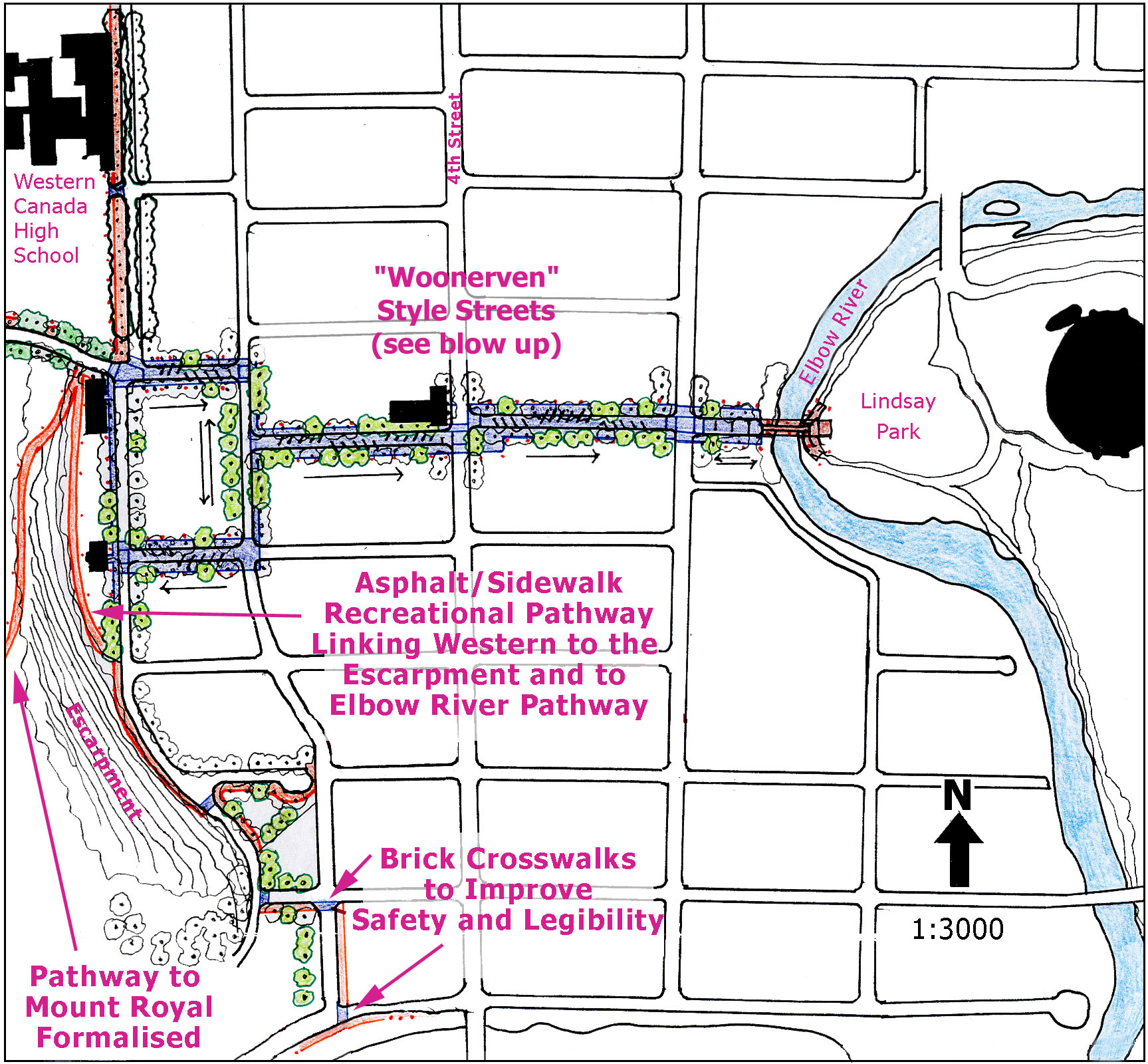

Redesign of the Recreational Linkages

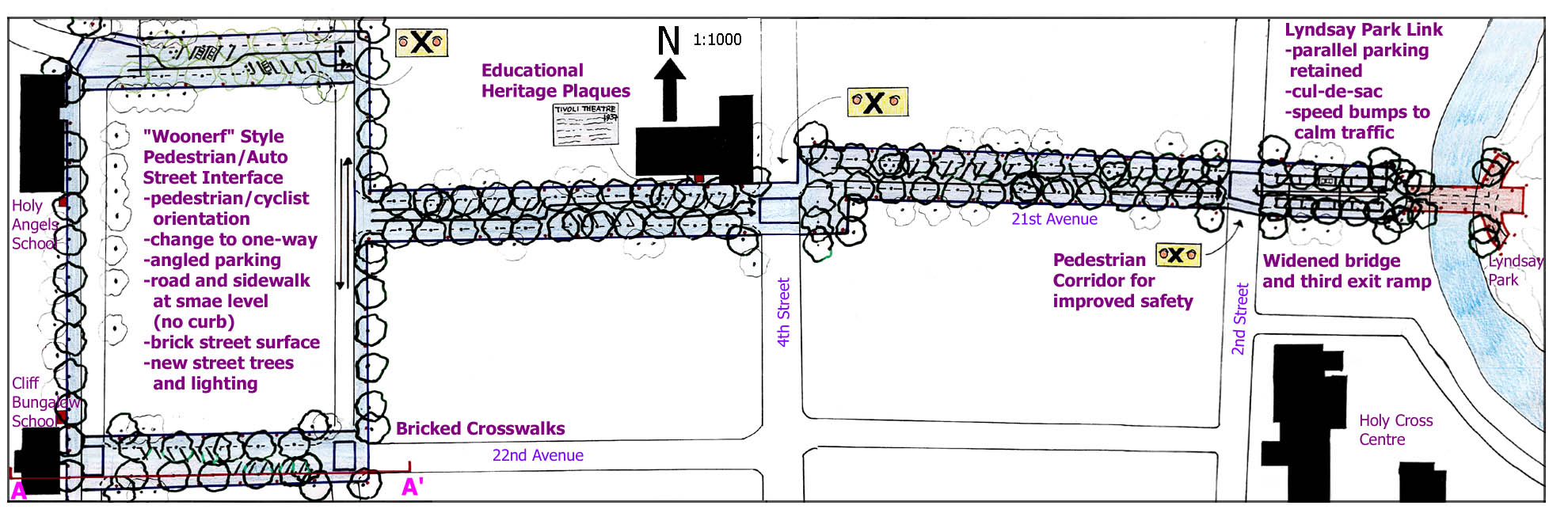

lyndsay_park_link
Redesign for the pathway linkage between Lindsay Park and the escarpment area.

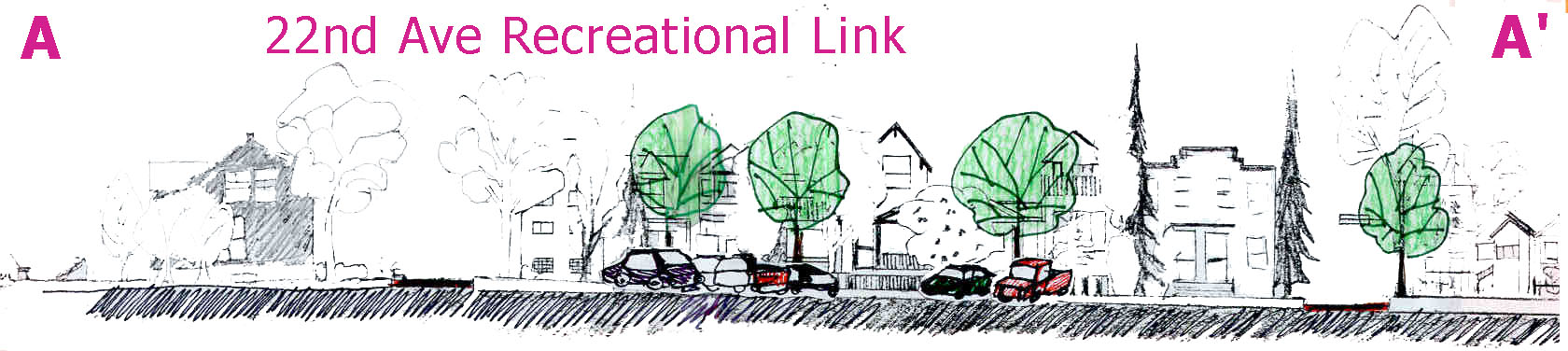

22nd-ave legend


"Woonerven" Pedestrian Street Patterns

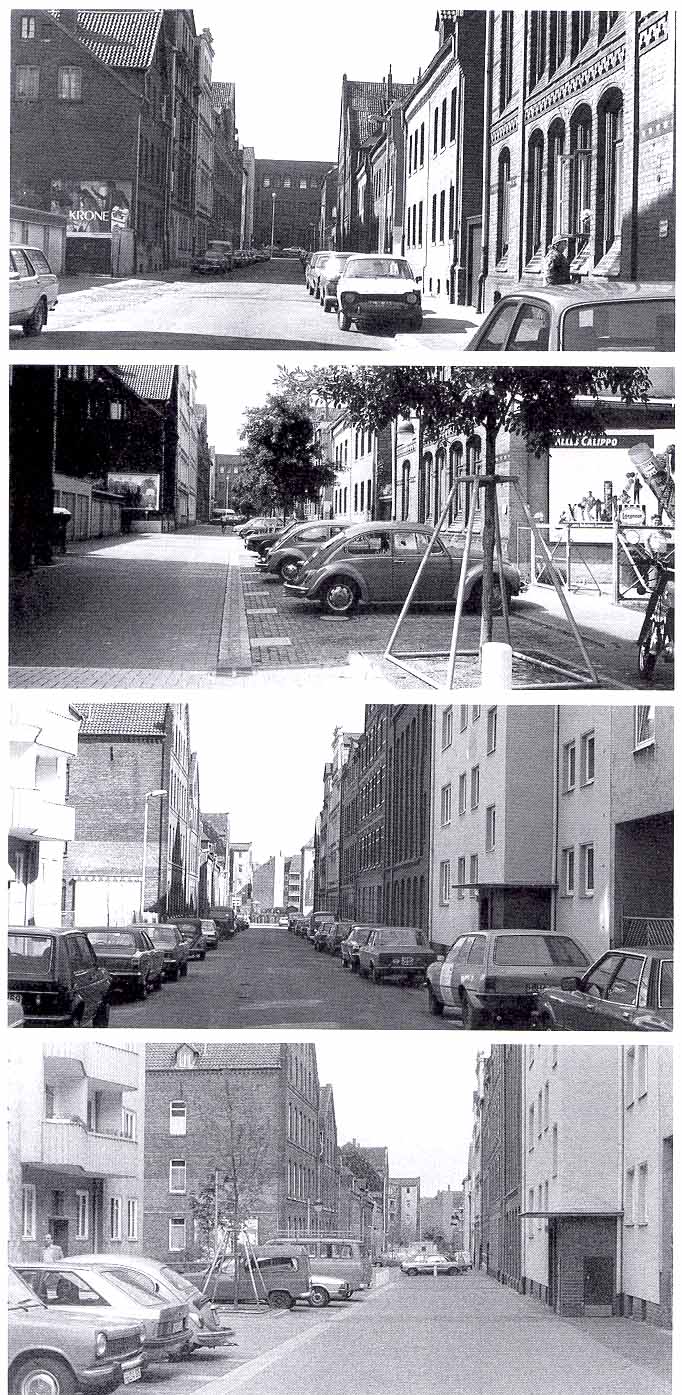

Woonerf_photo
The Woonerven road pattern was developed in the Netherlands
and has been adopted by other European cities.  It creates  a
"people first" pedestrian/vehicle interface by:
    eliminating the curb, thereby placing the sidewalk and street at the same level

    using the same paving material across the width of the street

    creating a zig-zag pattern for cars to move through, thereby
    decreasing their speed

    integrating street trees, childrens' play apparatus, and
    other street furniture to create a streetscape with vitality


    utilizing bylaws to create legal right of way for pedestrians and cyclists

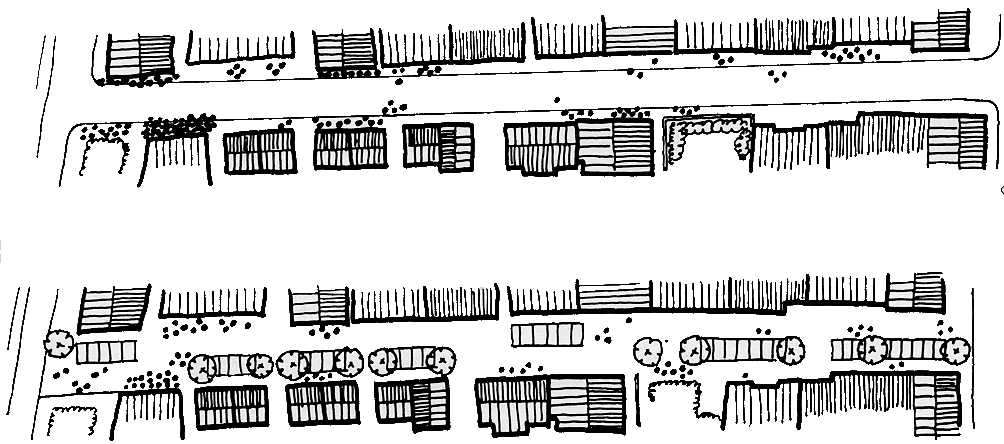

woonerf-diagram

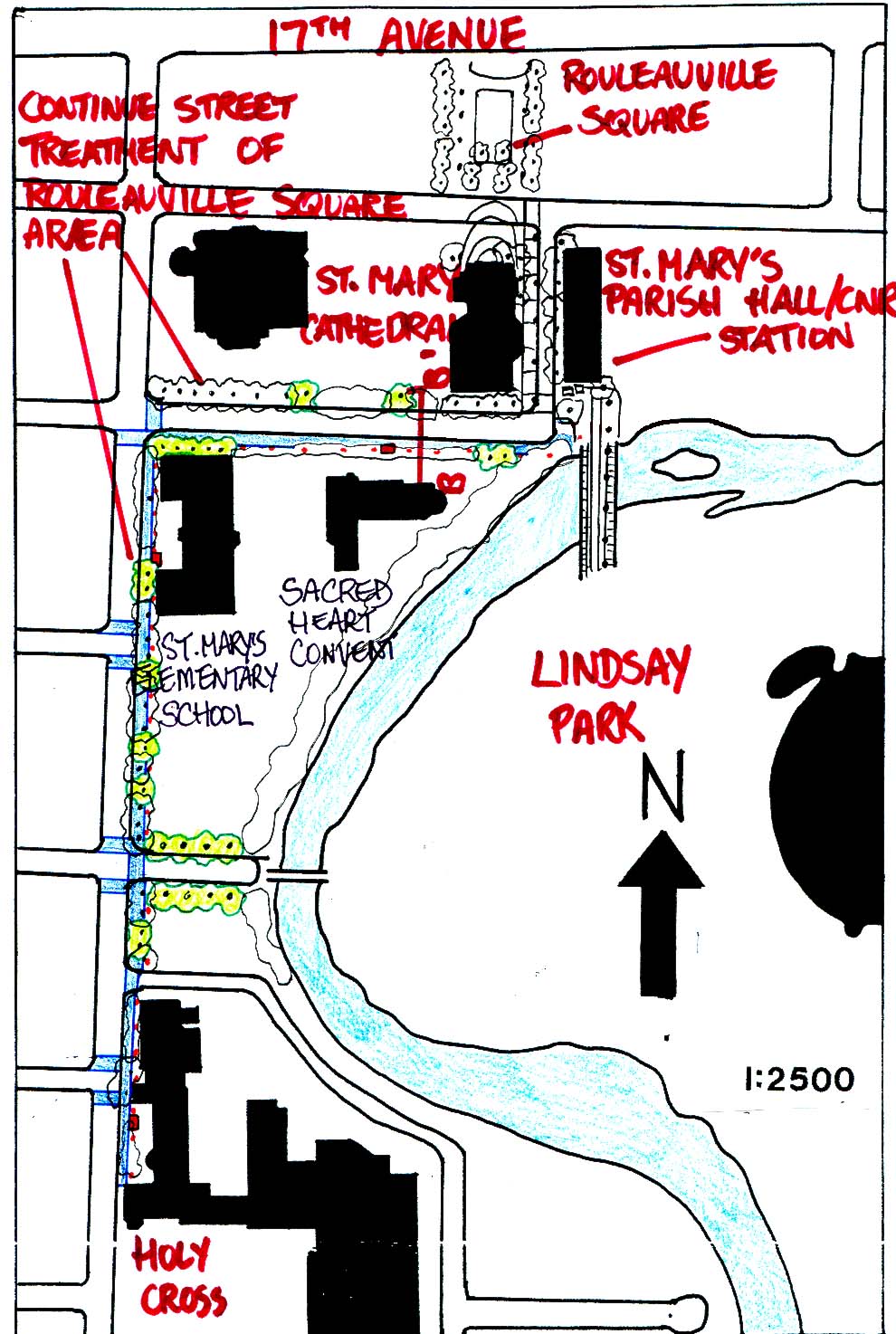

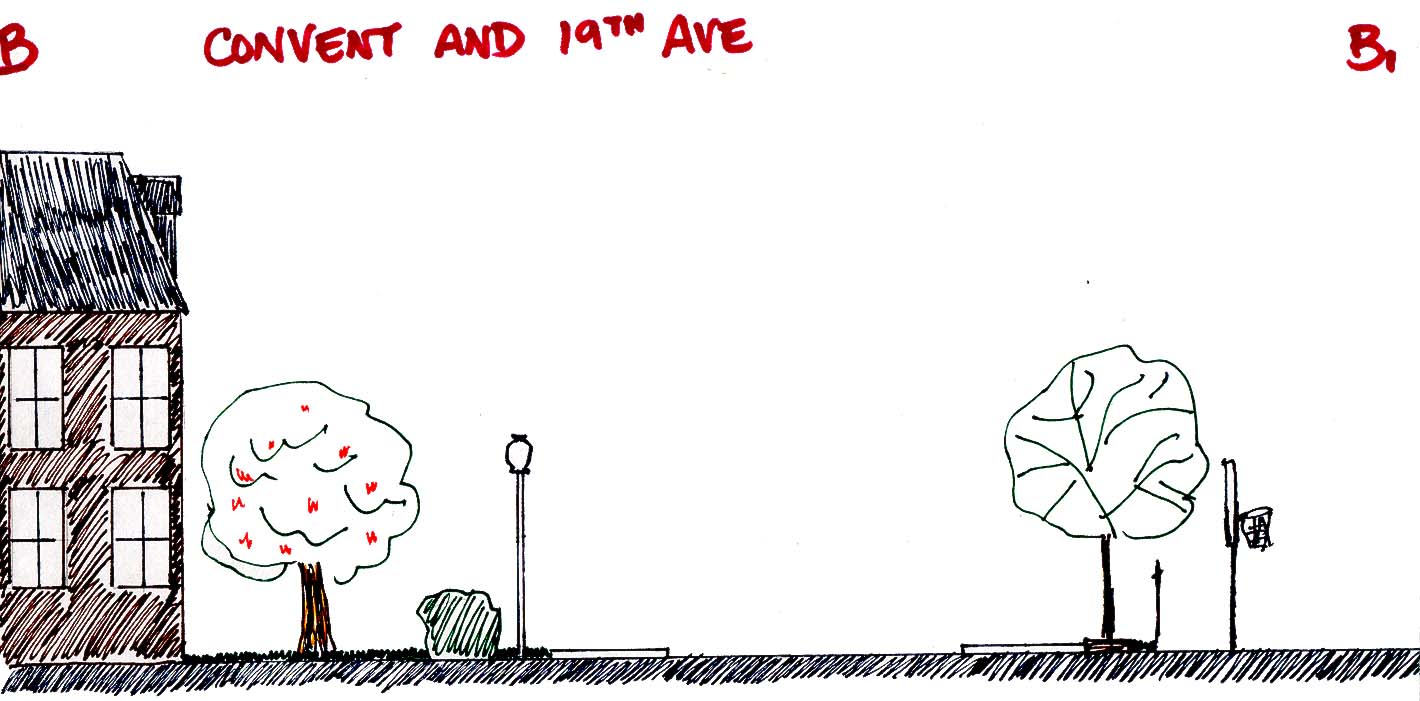

Redesign for the Historical St. Mary's Catholic Precinct area

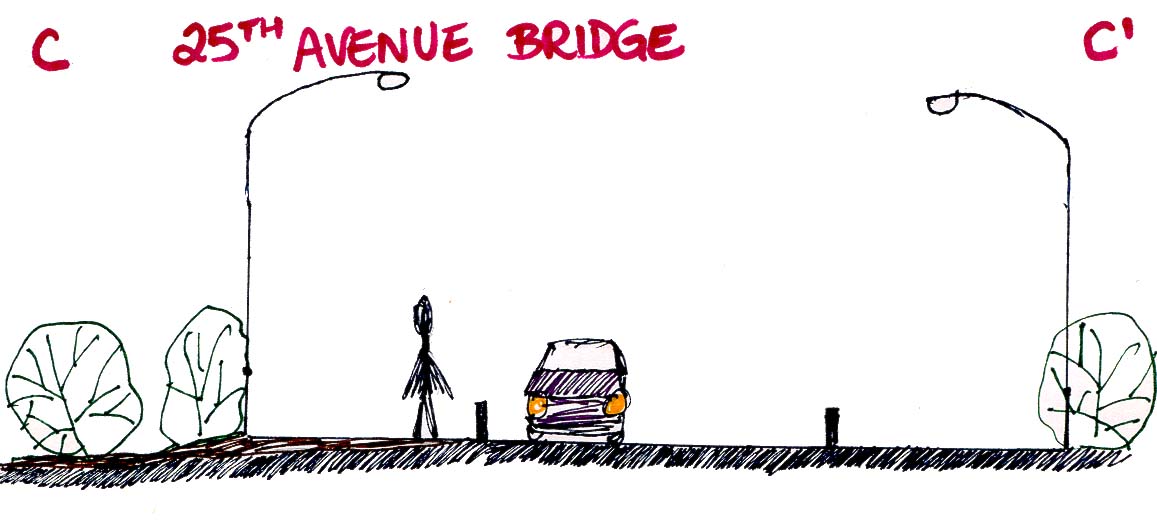

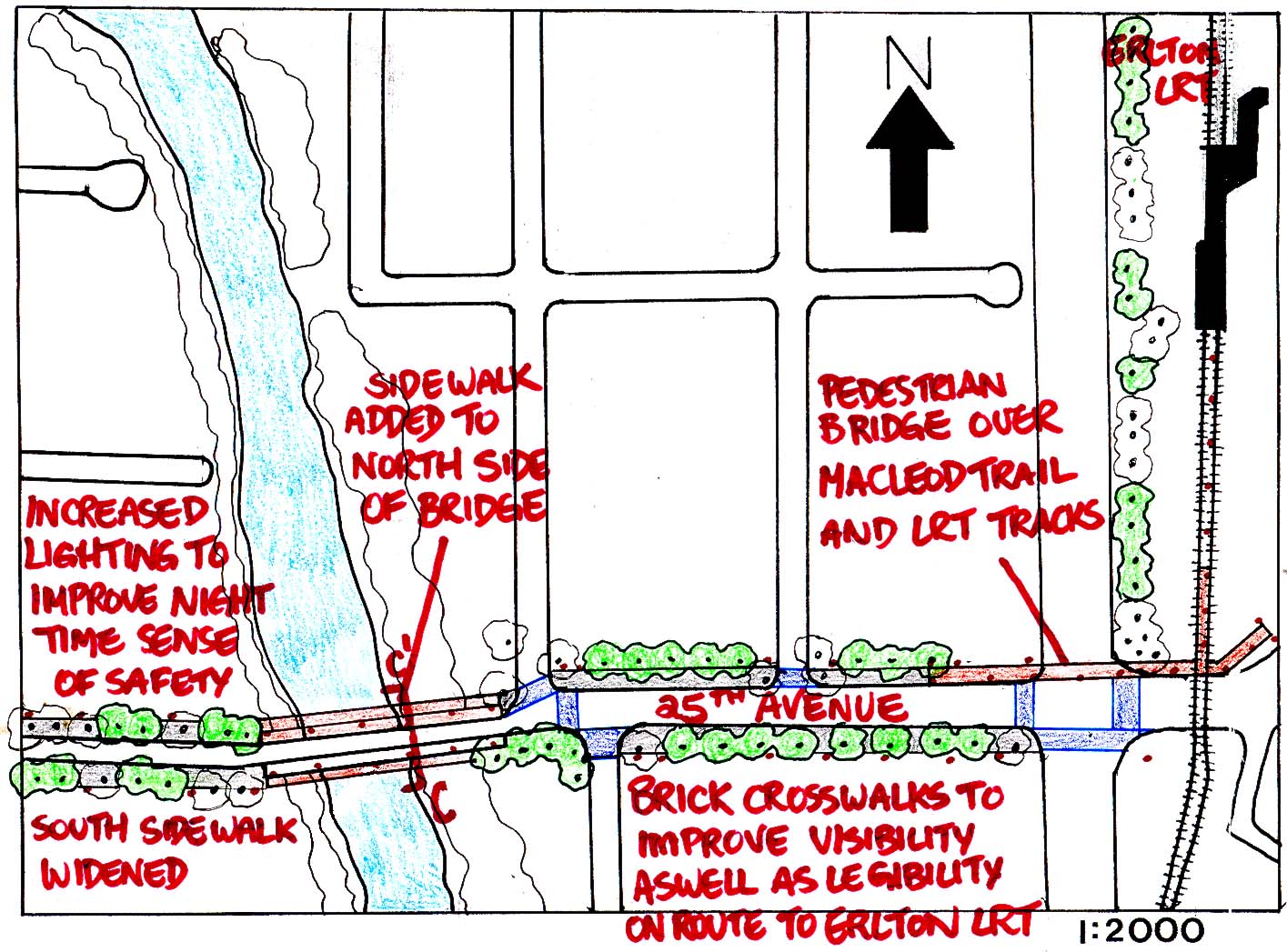

Redesign of 25th Avenue and the 25th Ave. Bridge
